ANVG

Adaptive Night Vision Goggle
Image Separator

We’re proud to unveil the ANVG – Adaptive Night Vision Goggle, engineered from the ground up for end-user performance, durability, and mission adaptability. Every feature has been thoughtfully designed to enhance comfort, usability, and reliability in the field.

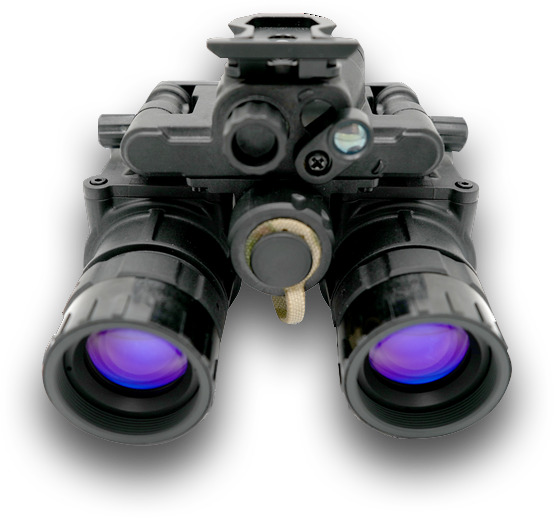

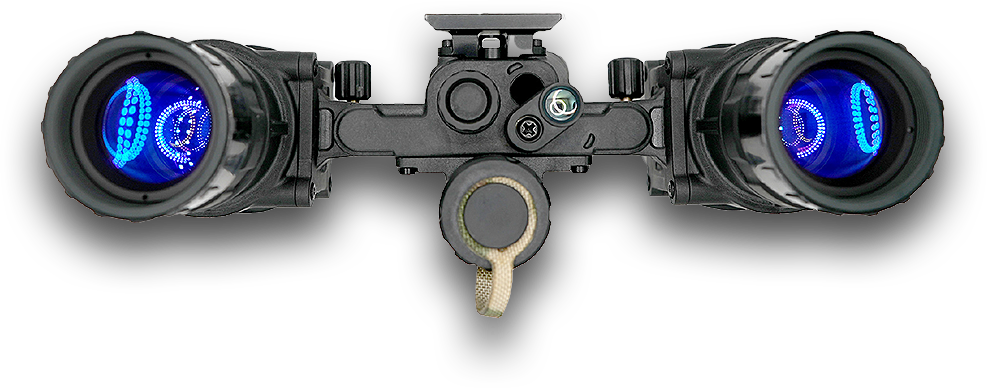

ANVG features

Key Features

Image Separator
  • Articulating Eye Pods
    Fold eye pods up or down for compact storage and helmet-free use.
  • Independent Pod Shut-Off (IDS)
    Automatically powers down each pod when rotated up, allowing for versatile tactical application and enhanced power management.
  • Integrated IR Illuminator with Adjustable Focus
    Offers reliable illumination in total darkness with the ability to switch between flood and focused light.
  • Interpupillary Distance (IPD) Adjustment
    Ensures a custom, comfortable fit for each user.
  • IR Signaling Capability
    Use the onboard IR light for covert team communication and signaling—critical for coordination without compromising concealment.
  • Dovetail Interface
    Ensures a strong, durable lock-up for stable mounting.
  • Skeletonized Pods
    Reduce weight while increasing structural rigidity.
  • Upgraded Material Composition
    Optimized for a superior strength-to-weight ratio.
  • Programmable Auto Power On/Off
    Simplifies power control for efficient operation.
  • On-Board CR-123 Battery Compartment & Fischer Port
    Offers flexible power optionsincluding external battery packs.
  • Articulating Eye Pods
    Fold eye pods up or down for compact storage and helmet-free use.
  • Independent Pod Shut-Off (IDS)
    Automatically powers down each pod when rotated up, allowing for versatile tactical application and enhanced power management.
  • Integrated IR Illuminator with Adjustable Focus
    Offers reliable illumination in total darkness with the ability to switch between flood and focused light.
  • Interpupillary Distance (IPD) Adjustment
    Ensures a custom, comfortable fit for each user.
  • IR Signaling Capability
    Use the onboard IR light for covert team communication and signaling—critical for coordination without compromising concealment.
  • Dovetail Interface
    Ensures a strong, durable lock-up for stable mounting.
  • Skeletonized Pods
    Reduce weight while increasing structural rigidity.
  • Upgraded Material Composition
    Optimized for a superior strength-to-weight ratio.
  • Programmable Auto Power On/Off
    Simplifies power control for efficient operation.
  • On-Board CR-123 Battery Compartment & Fischer Port
    Offers flexible power options including external battery packs.

    •

Specifications

Image Separator

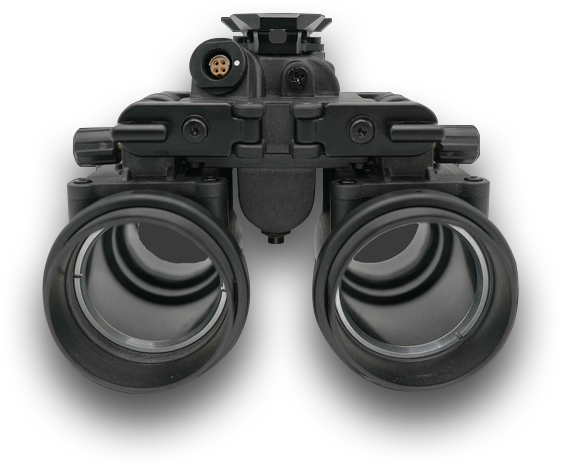

I.Binocular system

Type

Binocular

Magnification

1x magnification for situational awareness

Focus Range

Adjustable from 25 cm to infinity distance.

Diopter Adjustment

-6 to +2 diopters for user-specific visual acuity
customization

Housing Weight

180g

Device Weight with Carson Lens

604g

Device Weight with RPO Lens

532g

Usage Time

Operates continuously for at least 20 hours with
CR123A batteries.

II.Image Intensifier Tubes

Automatic/ Manual Gain Control

Automatic/ Manual Gain Control Works with NVT, Photonis (2-pin and 3-pin), and EGAC tubes—with or without manual gain. Also compatible with Elbit Systems of America, L3Harris, MX10160,and MX11769 image intensifier tubes

Gain

Gain Delivers a minimum brightness gain of28,000 (NVT) and 60,000 (L3 and Elbit) FL/FC at an input brightness level of 2E-6 FC

Figure of Merit (FOM)

  • NVT Auto-Gated White Phosphor1400+
  • Elbit System of America Thin-filmed White Phosphor Tubes 1600+
  • L3Harris Unfilmed White Phosphor Tubes 1600+
